QTZ 160 Self Erecting Tower Crane 60 Meter Electric Top Slewing

Brand Name : HYCM

Model Number : QTZ160(6024) Tower Crane

Certification : CE, ISO, GOST, CU-TR

Place of Origin : China

MOQ : 1

Price : $110200-118500 per set

Payment Terms : TT, LC

Supply Ability : 10 sets per month

Delivery Time : 20 days after receiving the deposit or origin LC

Packaging Details : Naked packing, 6*40’HQ or 7*40;HQ containers.

Condition : 100% New

Application : Buildings and projects

Type : Fixed with tower head

Max. load : 10 t

Jib length : 60 m

Tip. load : 2.4 t

Power supply : 380V/50Hz or according to client's requirements

Mast section : 1.833*1.833*2.5m or 2*2*3m

Electric box : Schneider

Power supply : 380V/50Hz, 415V/50Hz, 220V/50Hz or according to clients need

Contact Now

QTZ 160 Self Erecting Tower Crane 60 Meter Electric Top Slewing

Description

1) Working Radius (m): 65

2) Max. Load Capactiy (T): 10

3) Total Power (kw): 61.5 (not includes jacking-up system)

4) Power Supply: 380V/50Hz, 220V/60Hz or others

5) Base type: Well frame base/ cross base/ base with ballast

6) Optional parts (if you need them, please let me know in advance)

a. Anemometer
b. Air condition in cabin
c. Block box
d. Remote control

Specification

Rated Lifting Moment (KN.M) 1600
Rated Loading Capacity (t) 10
Max. Lifting Load (t) 10
Tip Load (t) 2.4
Max. Lifting Height (m) 200
Free standing height (m) 50
Rope length (m) 500
Span (m) 60
Working range (m) 3 to 60
Slewing speed (r/min) 0-0.6
Trolley peed (m/min) 0-60
Jacking-up speed (m/min) 0.4
Counter jib length (m) 14.6
Power supply 380V/50Hz or according to client's requirements
Power Capacity (kw) 61.5
Electric switch box Schneider
Main Material (mm) 125*14 /two angle steel with rib
Mast section (m) 1.835*1.835*2.5

Outstanding Features
1. The tower crane is a combination of advanced technologies of the present day.
2. It is equipped with a hydraulic self-raising mechanismand afrequency-converting slewing mechanism.
3. The electric control system of the tower crane adopts the advanced “PLC + frequency converter” control mode of the present day, which has realized the stepless speed regulation and greatly improves the reliability, maneuverability and stability of the control system and the work efficiency of the tower crane.
4. The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range.


Pictures

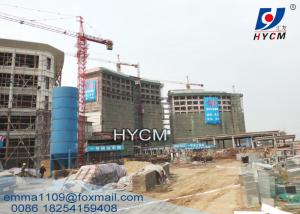

QTZ 160 Self Erecting Tower Crane 60 Meter Electric Top Slewing

QTZ 160 Self Erecting Tower Crane 60 Meter Electric Top Slewing


China QTZ 160 Self Erecting Tower Crane 60 Meter Electric Top Slewing factory

QTZ 160 Self Erecting Tower Crane 60 Meter Electric Top Slewing Images
