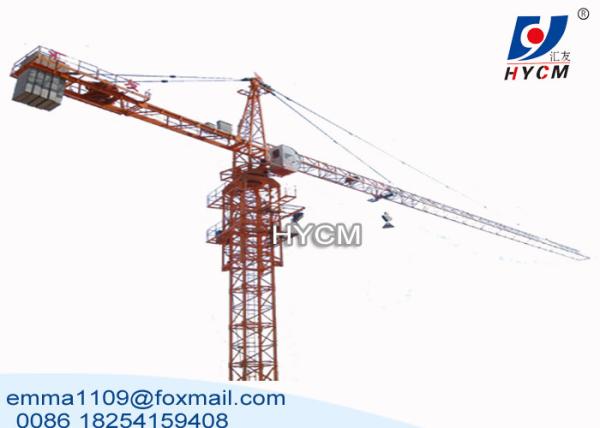

Building qtz125 Tower Crane with VFD Control Undercarrige Foundation

Name: Building qtz125 Tower Crane with VFD Control Undercarrige Foundation
Brand: HYCM
Price: 103000 USD

China Building qtz125 Tower Crane with VFD Control Undercarrige Foundation factory

Brand Name : HYCM

Model Number : QTZ125(6515) Tower Crane

Certification : CE, ISO, GOST, CU-TR

Place of Origin : China

MOQ : 1

Price : $103000-116900 per set

Payment Terms : TT, LC

Supply Ability : 20 sets per month

Delivery Time : 20 days after receiving the deposit or origin LC

Packaging Details : Naked packing, 6*40’HQ or 7*40;HQ containers.

Condition : 100% New

Application : Buildings and projects

Type : Fixed with tower head

Max. load : 10 t

Jib length : 65 m

Tip. load : 1.5 t

Power supply : 380V/50Hz or according to client's requirements

Mast section : 1.835*1.835*2.5m or 2*2*3m

Electric box : Schneider

Power supply : 380V/50Hz, 415V/50Hz, 220V/50Hz or according to clients need

Contact Now

Building qtz125 Tower Crane with VFD Control Undercarrige Foundation

Features
1) Working Radius (m): 65
2) Max. Load Capactiy (T): 10
3) Tip Load (T): 1.5
4) Mast Section dimension (m): 1.835×1.835×2.5 or 2*2*3m
5) Hoisting Mechanism Speed (m/min): 0-100 0-50
6) Motor power (kw): 45kw
7) Slewing Mechanism Speed (r/min): 0-0.6
8) Motor power (kw): 5.5×2
9) Trolleying Mechanism Speed (m/min): 0-60
10) Motor power (kw): 5.5

Specification

Model		QTZ125 (6515) Tower Crane
Working Radius (m)		65
Max. Load Capacity (T)		10
Tip Load (T)		1.5
Free standing height (m)		50
Max. Height with anchorages (m)		180
Mast Section dimension (m)		1.835×1.835×2.5, two angle steel with rib 125×12mm
Hoisting Mechanism	Speed (m/min)	0-100 0-50
	Motor power (kw)	45
Slewing Mechanism	Speed (r/min)	0-0.6
	Motor power (kw)	2*5.5
Trolleying Mechanism	Speed (m/min)	0-60
	Motor power (kw)	5.5
Jacking-up System	Speed (m/min)	0.4
	Motor power (kw)	5.5
Total Power (kw)		61.5
Power Supply		380V/50Hz, 220V/60Hz or others

Advantage
Automatic impeller blasting and spraying assembly line

Adopt the world first-class automatic spraying assembly line. The large structure parts are dealt with impeller blasting before spraying. That remove steel surface oxides and welding spatters effectively, eliminates the internal stress producing in welding process, increases the parts’ anti-figure strength and steel surface hardness, increases painting adhesion and prolong the service life of the product maximizes efficiency and saves energy.

Strict quality examination

The strict quality test, raw material test, test of welding, checking welding quality of appearance, assembly and adjustment of jib, tower head and pivot in factory.

We have professional packing person to pack and put the tower crane in the container or on to the truck.

Pictures

Building qtz125 Tower Crane with VFD Control Undercarrige Foundation Images
