QTZ100 Remote Control Construction Cranes Tower 60 Meter 8T Capacity
Related technical parameters are as following in detail:
- Lifting capacity: 8ton, Boom length: 60m
- Stationary height: 45m, adhered height: 150m.
- Standard section: 1835*1835*2500mm, Square steel: 135X12mm
- Hoisting speed (2 ratio): 80/40/8.5m/min, (4ratio): 40/20/4.25m/min
- Slewing speed: 0.6 r/min
- Trolleying speed: 40/20 m/min
- Hydraulic-hoisting speed: 0.4
- The min descending speed: less than 7 m/min
- Ddmitted working temperature : -20 to +40
Specification
| Model | QTZ100(6012) Tower Crane |
| Working Radius (m) | 60 |
| Max. Load Capacity (T) | 8 |
| Tip Load (T) | 1.2 |
| Free standing height (m) | 45 |
| Max. Height with anchorages (m) | 150 |
| Mast Section dimension (m) | 1.835×1.835×2.5, square steel 135×12mm |
| Hoisting Mechanism
| Speed (m/min) | 80/40/8.5 40/20/4.25 |
| Motor power (kw) | 30/30 |
| Slewing Mechanism
| Speed (r/min) | 0.6 |
| Motor power (kw) | 2*3.7 |
| Trolleying Mechanism
| Speed (m/min) | 40/20 |
| Motor power (kw) | 3.3/2.2 |
| Jacking-up System
| Speed (m/min) | 0.4 |
| Motor power (kw) | 5.5 |
| Total Power (kw) | 46.2 |
| Power Supply | 380V/50Hz, 220V/60Hz or others |
Our Service
------Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.

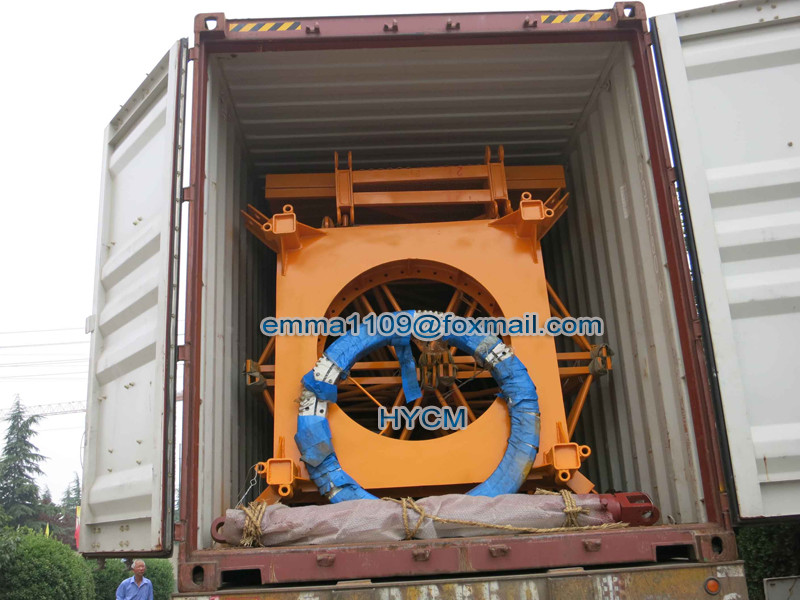

------Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
------Warranty Assurance
For our tower crane, we provide 1 year warranty period and quick replace service.
------The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Safety devices:
1) Hoist height limit
2) Over speed limit
3)Over load limit
4) Lifting moment limit
5) Slewing angle limit
6) Emergency stop button
7) Obstruction light (tip of jib, tower head)
8) Wind lock device.
Competitive Advantage
1. Focusing on tower crane exporting for 15 years;
2. Manufacturer's representative;
3. Preferential ex-factory price, excellent product quality and good after-sales service are our pursuit;
4. Our tower cranes had exported to more than 20 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar and Algeria etc.
We are dedicated to provide you professional solutions with Aclass Service!
Pictures
|
|

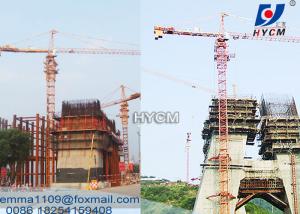

QTZ100 Remote Control Construction Cranes Tower 60 Meter 8T Capacity Images
|
