Hydraulic Telescopic Tower Craines Specification 3T Load QTZ31.5 Model

Name: Hydraulic Telescopic Tower Craines Specification 3T Load QTZ315 Model
Brand: HYCM
Price: 24600 USD

China Hydraulic Telescopic Tower Craines Specification 3T Load QTZ31.5 Model factory

Brand Name : HYCM

Model Number : TC3808 Small Tower Crane

Certification : CE, ISO, GOST, CU-TR

Place of Origin : China

MOQ : 1

Price : $24600-26600 per set

Payment Terms : TT, LC

Supply Ability : 40 sets per month

Delivery Time : within 20 days after receiving the deposit or origin LC

Packaging Details : Naked packing, 3*40’HQ containers.

Condition : 100% New

Application : Buildings and projects

Type : Fixed with tower head

Max. load : 3 t

Jib length : 38 m

Tip. load : 0.8 t

Power supply : 380V/50Hz or according to client's requirements

Mast section : 1.5*1.5*2.2 m

Main chord : 125*10mm

Foundation type : well-frame

Contact Now

Hydraulic Telescopic Tower Craines Specification 3T Load QTZ31.5 Model

Main Technical Parameters

1) Nominal Lifting Moment: 310KN.m

2) Working Range: 3-38m

3) Max. Lifting Capacity: 3t

4) Independent Standing Height: 29m

5) Attached Standard Height: 120m

6) Lifting Speed: (a=2) 46/23/5m/mim

7) Slewing Speed: 0.76/0.38r/min

8) Radius Changing Speed: 38.6/25.2m/mim

9) Climbing Speed: 0.5m/min

Specification

Model		QTZ31.5 (3808) Tower Crane
Type		Top kit / Cat Head
Working Radius (m)		38
Max. Load Capacity (T)		3
Tip Load (T)		0.8
Freestanding height (m)		29
Max. Height with anchorage (m)		800
Mast Section dimension (m)		1.5×1.5×2.5, angle steel 125×10mm
Hoisting Mechanism	Speed (m/min)	(a=2) 46/23/5
	Motor power (kw)	15
Slewing Mechanism	Speed (r/min)	0.76/0.38
	Motor power (kw)	3.7
Trolleying Mechanism	Speed (m/min)	24.6/16.5
	Motor power (kw)	2.2/1.5
Jacking-up System	Speed (m/min)	0.5
	Motor power (kw)	3
Total Power (kw)		23.5
Power Supply		380V/50Hz or according to clients needs

Advantage

1. Export to more than 20 countries with CE/ ISO/ GOST Certifications by skilled sales team.

2. Mobile and internal climbing type tower cranes are also offering as new designed mast sections.

3. High Quality control: blasting and rust protection painting with advanced painting process. Strict and experience welding line.

4. Well known Mechanisms system and Schneider Electronic control system.

5. Engineers are available to service machinery overseas within 12 months warranty from the B/L date.

6. One set free easy-worn spare parts are provided with per set tower cranes.

Hydraulic Telescopic Tower Craines Specification 3T Load QTZ31.5 Model

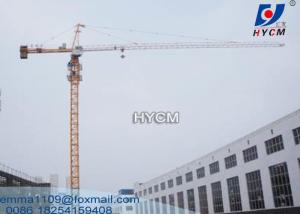

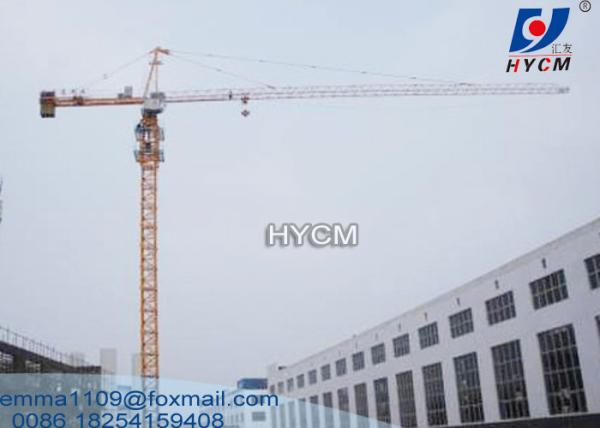

Hydraulic Telescopic Tower Craines Specification 3T Load QTZ31.5 Model Images
