Construction Cranes Tower Quotation Specification QTZ 5010 4t Max. Load
We value our customers; We value our customers’ customers
HYCM-TOWER CRANE Focus on superior products (tower crane) and perfect service
Performance parameters
a. Max. jib length: 50m
b. Max. lifting capacity: 4t
c. Max. hoisting capacity at jib tip: 1.0t
d. Max. lifting moment: 500 t.m
e. Max. free-standing height: 30m
f. Max. working height of anchored crane: 120m
g. Types of tower crane: fixed with outer side climbing type / inner climbing type and mobile type
Specification
| Model | QTZ50 (5010) Tower Crane |
| Type | Topkit / Cat Head |
| Working Radius (m) | 50 |
| Max. Load Capacity (T) | 4 |
| Tip Load (T) | 1.0 |
| Freestanding height (m) | 29 |
| Max. Height with anchorage (m) | 120 |
| Mast Section dimension (m) | 1.6×1.6×2.5, Square 135×10mm |
| Hoisting Mechanism
| Speed (m/min) | (a=2) 64.15/32.57/7.0
(a=4) 32.14/15.60/3.5 |
| Motor power (kw) | 15/15/4 |
| Slewing Mechanism
| Speed (r/min) | 0.70/0.35 |
| Motor power (kw) | 3.7 |
| Trolleying Mechanism
| Speed (m/min) | 38.6/25.2 |
| Motor power (kw) | 2.2/1.5 |
| Jacking-up System
| Speed (m/min) | 0.4 |
| Motor power (kw) | 4 |
| Total Power (kw) | 24.9 |
| Power Supply | 380V/50Hz or according to clients needs |
Advantage
Automatic impeller blasting and spraying assembly line
Adopt the world first-class automatic spraying assembly line. The large structure parts are dealt with impeller blasting before spraying. That remove steel surface oxides and welding spatters effectively, eliminates the internal stress producing in welding process, increases the parts’ anti-figure strength and steel surface hardness, increases painting adhesion and prolong the service life of the product maximizes efficiency and saves energy.
Strict quality examination
The strict quality test, raw material test, test of welding, checking welding quality of appearance, assembly and adjustment of jib, tower head and pivot in factory.
We have professional packing person to pack and put the tower crane in the container or on to the truck.
Our Service
------Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
------Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
------Warranty Assurance
For our tower crane, we provide 1 year warranty period and quick replace service.
------The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Photos
|
|

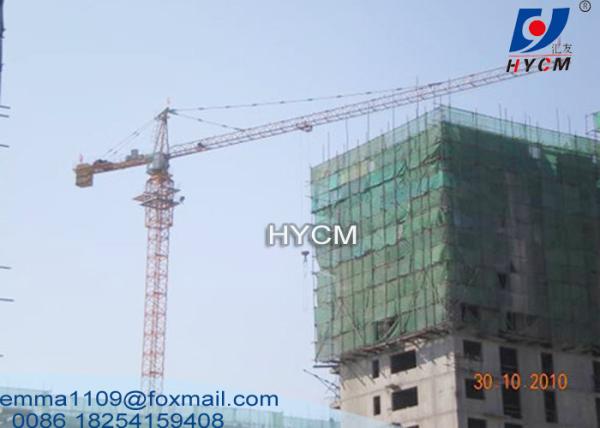

Construction Cranes Tower Quotation Specification QTZ 5010 4t Max. Load Images
|
