Self Rising Tower Crane TC6020 Max Jib Length 60 meters 10TON Capacity
Shot Parameters
1.TC6020 Topkit Tower Crane
2. Type:fixed and external climbing
3. Jib length:60m
4. Tip load:2.0
5. Max.laod:10t
6.Freestanding height:50m
Specification
| Model | QTZ125(6020) |
| Working Radius (m) | 60 |
| Max. Load Capactiy (T) | 10 |
| Tip Load (T) | 2.0 |
| Free Height Under Hook (m) | 50 |
| Max. Height with anchorages (m) | 180 |
| Mast Section dimension (m) | 1.835×1.835×2.5 or 2*2*3 |
| Hoisting Mechanism | Speed (m/min) | 0-100 0-50 |
| Motor power (kw) | 45kw |
| Slewing Mechanism | Speed (r/min) | 0-0.6 |
| Motor power (kw) | 5.5×2 |
| Trolleying Mechanism | Speed (m/min) | 0-60 |
| Motor power (kw) | 5.5 |
| Jacking-up System | Speed (m/min) | 0.4 |
| Motor power (kw) | 5.5 |
| Total Power (kw) | 61.5 (not includes jacking-up system) |
| Power Supply | 380V/50Hz |
| Base type | Well shaped base/cross base/ base with ballast |
| No. of containers | 7 x 40’HQs |
| Optional parts
(if you need them, please let me know in advance) | 1) Anemometer
2) Air condition in cabin
3) Block box
4) Remote control |
Main Features
This Tower Cranes can handle high load capacities and have an unmistakable silhouette. The various size classes prove their worth for medium and large construction projects, for example for industrial and plant construction.
Customers around the world rely on our top-slewing cranes for major building projects. The intelligent high-performance drive units ensure high handling capacities and thus enhance efficiency.
Safety Devices
1. 3 obstacle lights
2. Height limiter
3. Slewing limiter
4. Range/ trolley limiter
5. Weight limiter
6. Moment limiter
7. Anemometer and block box(optional)
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices
Our Service
------Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
------Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
------Warranty Assurance
For our tower crane, we provide 1 year warranty period and quick replace service.
------The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Pictures
|
|

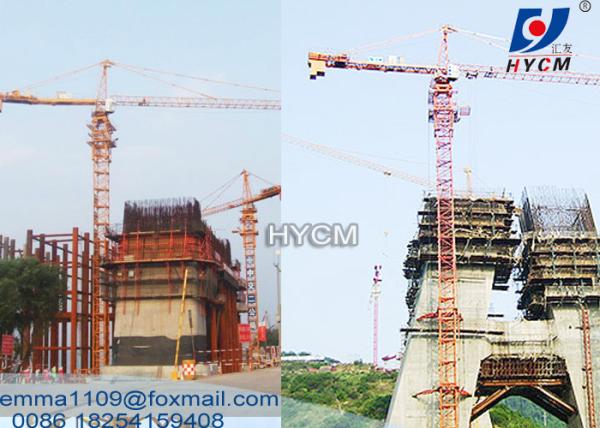

Self Rising Tower Crane TC6020 Max Jib Length 60 meters 10TON Capacity Images
|
